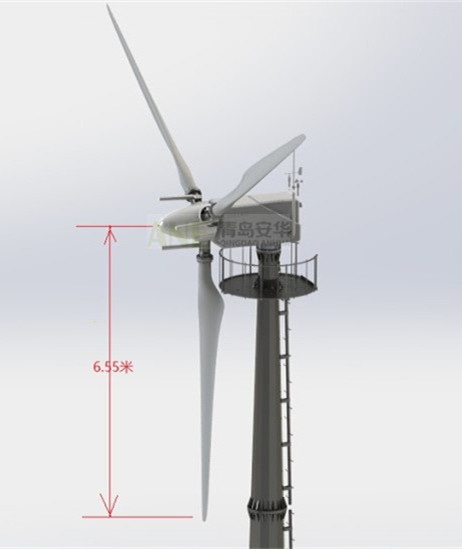

AH-30kW Pitch controlled wind turbine

★Leading technology——Intelligent control, the system can be expandable.


1. Combine the world excellent wind control technology and self-developed pitch controlled technology

2. The hardware adopts international famous brand, the software adopts redundant control strategy.

3. It can be well compatible with various well-known brand converters and remote modules


★High safety——unattended continuous operation all the time


1. The rotate speed is regulated by pitch controlled mechanism all the time,the turbine can operate steadily even in worse wind condition.

2. More than ten redundant control strategies make sure the system safety and stability in all climate.


★Generate more power——Pitch controlled regulation,high efficiency, more than 30% output


1. Above rated wind speed, blade pitch angle will be passive regulated to keep full-power output.

2. Large working wind speed range(3-25m/s)

Specifications

Basic information

Rated power:30kWModel:AH-30K
Rotor diameter:13.1mBlade:3*Reinforced FRP
Start-up wind speed:2.5m/sRated voltage:DC450V/280V
Rated wind speed:12m/sOver wind speed protection:Pitch controlled+Intelligent safety protection system
Working wind speed:3-25m/sTower type:Independent/Hydraulic
Survive wind speed:59.5m/sRpm regulation : Mechanical centrifugal pitch controlled
Rated rpm:105r/minWind direction finding method:Active yawing
Total weight:2800kgWorking temperature:-25℃~50℃
Design grade:IEC IITower height:≥20m
Noise level:≤60dBDesign life:20years





Certifications and reportCE Intertek

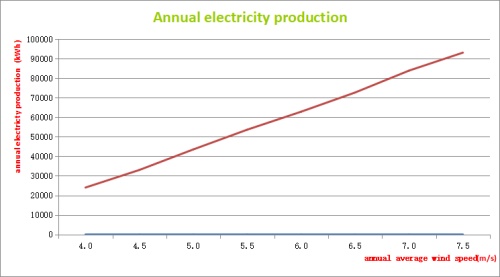

Annual electricity production

Annual average wind speed 4.5m/s:33000kWh      Annual average wind speed 5m/s:43500kWh

Annual average wind speed 5.5m/s:53600kWh      Annual average wind speed 6m/s:62800kWh


Safety protection

Rpm regulation : Mechanical centrifugal pitch controlled

Lightning protection measures: lightning protection module + lightning protection grounding.

Over wind speed protection:Pitch controlled+Intelligent safety protection system

Surface anticorrosion: hot galvanizing + special anticorrosive paint.

GeneratorType:Direct drive 3 phase AC PMG      Protection class:IP54      Insulation class:F

Solution Plan
Application field

Micro grid power station. on-grid system; wind and solar hybrid system; GSM base station, frontier sentry, island and sight lighting system and so on.
